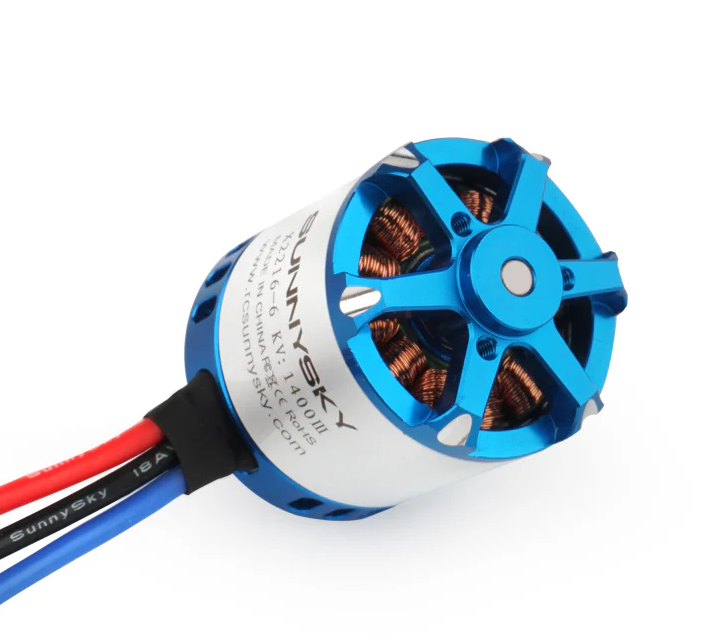

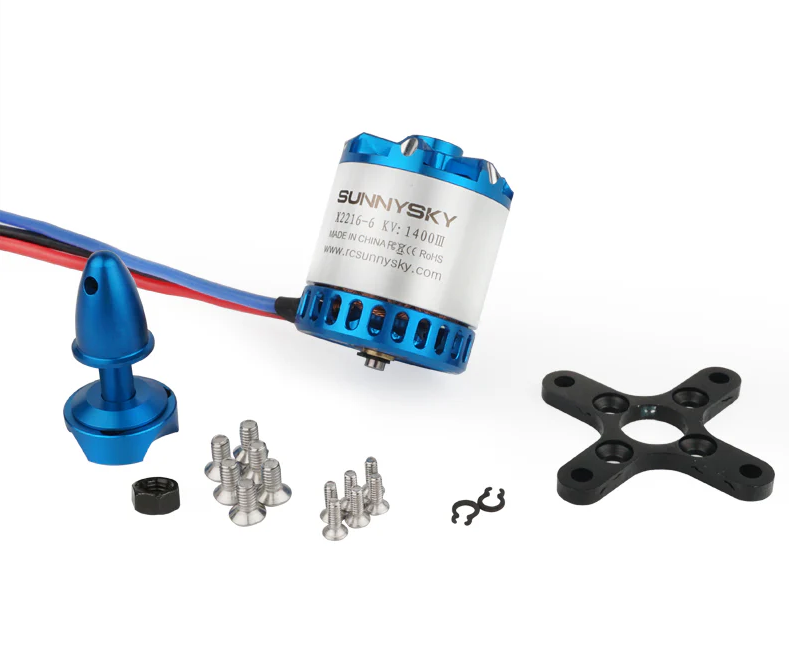

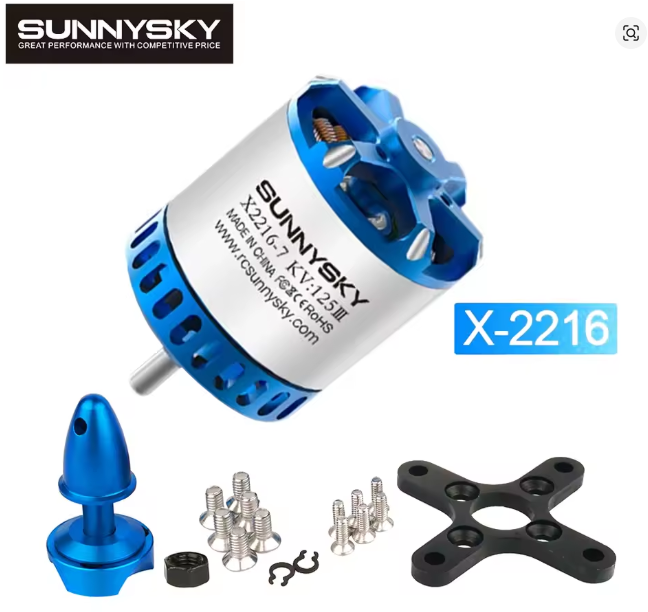

SUNNYSKY X2216 III-KV1250 BRUSHLESS MOTOR
0 Puan - 0 Yorum
2.130,00 TL
**Sitede gösterilen ürün resimlenin üzerinde ki "KV" değeri ürün açıklamasında yazan değerlerden farklı olabilir. Lütfen sipariş verirken ürün açıklamasında yazan "KV" değerlerini dikkate alın.
| Stator Diameter | 22mm | Rotor Diameter | 27.7mm |
|---|---|---|---|
| Stator Thickness | 16mm | Body Length | 34mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 3-4S |
| No.of Rotor Poles | 14 | ESC | 40A |
| Motor Kv | 1250 | Recommended Prop(inch) | APC8060/APC1047/APC9047/APC9045 |
| No-load current | 1A/10V | Weight for aerobatics airplane | 850g(3S 9060\9047\9045)(4S 8060) |
| Motor Resistance | 45mΩ | Weight for 3D airplane | 800g(3S 9047\1047) |
| Max Continuous Current | 40A/30s | ||
| Max Continuous Power | 600W | ||
| Weight | 69g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | RPM | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|---|
| APC10*4.7 | 11.1 | 0.8 | 100 | 8.88 | 11.26 | 2570 | 87℃ 1min40s |
| 1.8 | 200 | 19.98 | 10.01 | 3568 | |||
| 3.1 | 300 | 34.41 | 8.72 | 4230 | |||
| 4.8 | 400 | 53.28 | 7.51 | 4842 | |||
| 6.5 | 500 | 72.15 | 6.93 | 5364 | |||
| 8.5 | 600 | 94.35 | 6.36 | 5781 | |||
| 10.9 | 700 | 120.99 | 5.79 | 6251 | |||
| 13 | 800 | 144.3 | 5.54 | 6616 | |||
| 15.8 | 900 | 175.38 | 5.13 | 6962 | |||
| 18.5 | 1000 | 205.35 | 4.87 | 7227 | |||
| 21.8 | 1100 | 241.98 | 4.55 | 7629 | |||
| 24.8 | 1200 | 275.28 | 4.36 | 7924 | |||
| 27.6 | 1300 | 306.36 | 4.24 | 8244 | |||
| 32.3 | 1400 | 358.53 | 3.90 | 8542 | |||
| 36.3 | 1500 | 402.93 | 3.72 | 8789 | |||
| 42.7 | 1750 | 473.97 | 3.69 | 9332 | |||
| APC9060 | 11.1 | 1 | 100 | 11.1 | 9.01 | 3115 | 60℃ 10min |
| 2.3 | 200 | 25.53 | 7.83 | 4358 | |||
| 4 | 300 | 44.4 | 6.76 | 5238 | |||
| 5.5 | 400 | 61.05 | 6.55 | 5991 | |||
| 7.2 | 500 | 79.92 | 6.26 | 6778 | |||
| 9.2 | 600 | 102.12 | 5.88 | 7305 | |||
| 11.7 | 700 | 129.87 | 5.39 | 7876 | |||
| 14.1 | 800 | 156.51 | 5.11 | 8360 | |||
| 17.6 | 900 | 195.36 | 4.61 | 8877 | |||
| 19.9 | 1000 | 220.89 | 4.53 | 9377 | |||
| 23.6 | 1100 | 261.96 | 4.20 | 9845 | |||
| 26.4 | 1200 | 293.04 | 4.10 | 10250 | |||
| 29.5 | 1333 | 327.45 | 4.07 | 10589 | |||
| APC9045 | 11.1 | 1 | 100 | 11.1 | 9.01 | 3365 | 63℃ 10min |
| 2.2 | 200 | 24.42 | 8.19 | 4732 | |||
| 3.7 | 300 | 41.07 | 7.30 | 5730 | |||
| 5.3 | 400 | 58.83 | 6.80 | 6539 | |||
| 6.9 | 500 | 76.59 | 6.53 | 7371 | |||
| 8.8 | 600 | 97.68 | 6.14 | 7983 | |||
| 11 | 700 | 122.1 | 5.73 | 8544 | |||
| 13.1 | 800 | 145.41 | 5.50 | 9094 | |||
| 15.6 | 900 | 173.16 | 5.20 | 9613 | |||
| 18.25 | 1000 | 202.575 | 4.94 | 10134 | |||
| 20.9 | 1100 | 231.99 | 4.74 | 10655 | |||
| 25 | 1264 | 277.5 | 4.55 | 11186 | |||
| APC9047 | 11.1 | 0.9 | 100 | 9.99 | 10.01 | 3240 | 52℃ 10min |
| 2.1 | 200 | 23.31 | 8.58 | 4596 | |||
| 3.6 | 300 | 39.96 | 7.51 | 5603 | |||
| 5.3 | 400 | 58.83 | 6.80 | 6431 | |||
| 6.7 | 500 | 74.37 | 6.72 | 7226 | |||
| 8.4 | 600 | 93.24 | 6.44 | 7916 | |||
| 10.5 | 700 | 116.55 | 6.01 | 8532 | |||
| 13 | 800 | 144.3 | 5.54 | 9259 | |||
| 15.6 | 900 | 173.16 | 5.20 | 9791 | |||
| 17.8 | 1000 | 197.58 | 5.06 | 10352 | |||
| 20.4 | 1100 | 226.44 | 4.86 | 10982 | |||
| 24.2 | 1269 | 268.62 | 4.72 | 11395 | |||
| APC8060 | 11.1 | 1.4 | 100 | 15.54 | 6.44 | 3811 | 76℃ 10min10s |
| 3.1 | 200 | 34.41 | 5.81 | 5370 | |||
| 5 | 300 | 55.5 | 5.41 | 6548 | |||
| 7.05 | 400 | 78.255 | 5.11 | 7532 | |||
| 9.2 | 500 | 102.12 | 4.90 | 8319 | |||
| 11.5 | 600 | 127.65 | 4.70 | 9151 | |||
| 14.3 | 700 | 158.73 | 4.41 | 9723 | |||
| 17.7 | 800 | 196.47 | 4.07 | 10511 | |||
| 24.3 | 966 | 269.73 | 3.58 | 11303 | |||
| 14.8 | 1 | 100 | 14.8 | 6.76 | 3854 | ||
| 2.4 | 200 | 35.52 | 5.63 | 5420 | |||
| 3.9 | 300 | 57.72 | 5.20 | 6498 | |||
| 5.5 | 400 | 81.4 | 4.91 | 7527 | |||
| 7.4 | 500 | 109.52 | 4.57 | 8352 | |||
| 9.45 | 600 | 139.86 | 4.29 | 9123 | |||
| 11.7 | 700 | 173.16 | 4.04 | 9890 | |||
| 14.1 | 800 | 208.68 | 3.83 | 10536 | |||
| 17 | 900 | 251.6 | 3.58 | 11011 | |||
| 20.6 | 1000 | 304.88 | 3.28 | 11640 | |||
| 24.6 | 1100 | 364.08 | 3.02 | 12107 | |||
| 28 | 1200 | 414.4 | 2.90 | 12705 | |||
| 36.2 | 1371 | 535.76 | 2.56 | 13576 |
